Cisco Barebone System - Blade - 2 x Processor Support - Intel C620 Chip - 3 TB DDR4 SDRAM DDR4-2666/PC4-21300 Maximum RAM Support - 24 Total Memory Slots - 12Gb/s SAS RAID Supported Controller - G200e 8 MB Graphic(s) - Processor Support (Xeon) - Ethernet - 1 USB 3.0 Port(s) - 3 Year
Less
Cisco Barebone System - Blade - 2 x Processor Support - Intel C620 Chip - 3 TB DDR4 SDRAM DDR4-2666/PC4-21300 Maximum RAM Support - 24 Total Memory Slots - 12Gb/s SAS RAID Supported Controller - G200e 8 MB Graphic(s) - Processor Support (Xeon) - Ethernet - 1 USB 3.0 Port(s) - 3 Year

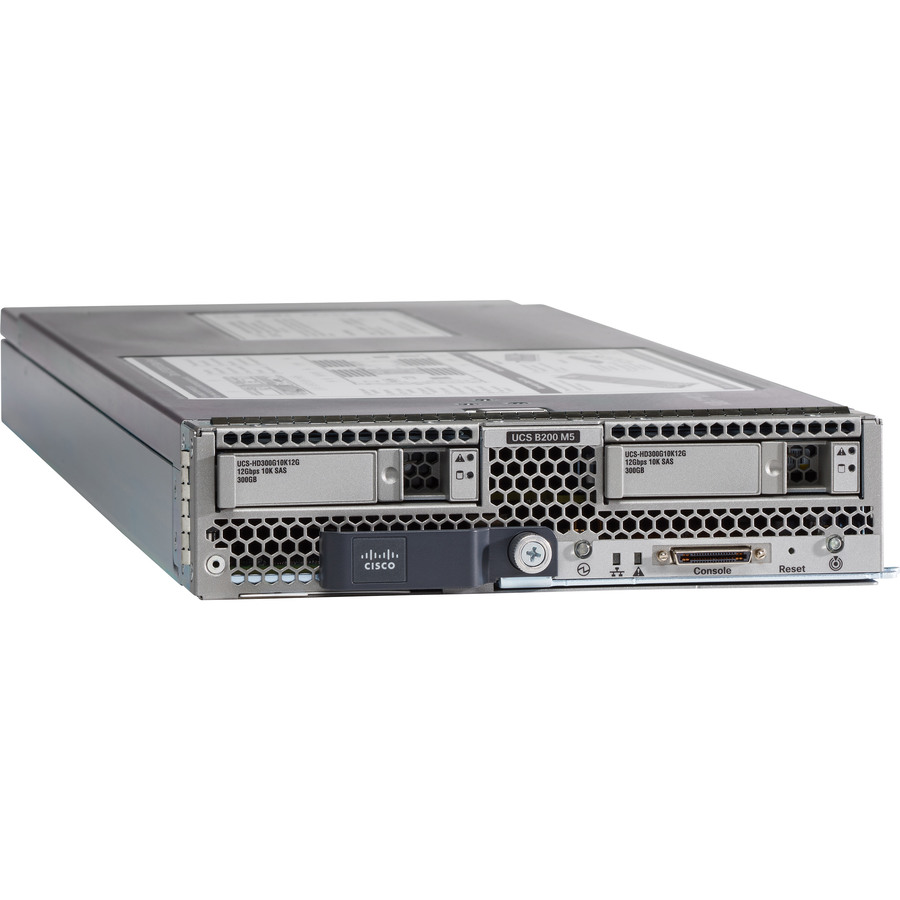

Delivering performance, versatility and density without compromise, the Cisco UCS B200 M5 Blade Server addresses the broadest set of workloads, from IT and web infrastructure through distributed database.The enterprise-class Cisco UCS B200 M5 blade server extends the capabilities of Cisco's Unified Computing System portfolio in a half-width blade form factor. The Cisco UCS B200 M5 harnesses the power of the latest Intel® Xeon® processor scalable family CPUs with up to 3072 GB of RAM (using 128 GB DIMMs), two solid-state drives (SSDs) or hard disk drives (HDDs), and up to 80 Gbps throughput connectivity.
I/O Expansions
| Number of Total Expansion Bays | 2 |
Network & Communication
| Ethernet Technology | Ethernet |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C620 |
Controllers
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
Display & Graphics
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 8 MB |
General Information
| Product Type | Barebone System |
| Manufacturer Part Number | UCSB-B200-M5-U |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Name | UCS B200 M5 Barebone System |
| Product Series | B200 M5 |
| Brand Name | Cisco |
Interfaces/Ports
| Total Number of USB Ports | 1 |
| Number of USB 3.0 Ports | 1 |
Processor
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Number of Processors Supported | 2 |
Memory
| Maximum Memory Supported | 3 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21300 |
| Total Number of Memory Slots | 24 |
Physical Characteristics
| Weight (Approximate) | 4.31 kg |
| Form Factor | Blade |
| Height | 49.5 mm |
| Width | 203.2 mm |
| Depth | 619.8 mm |
